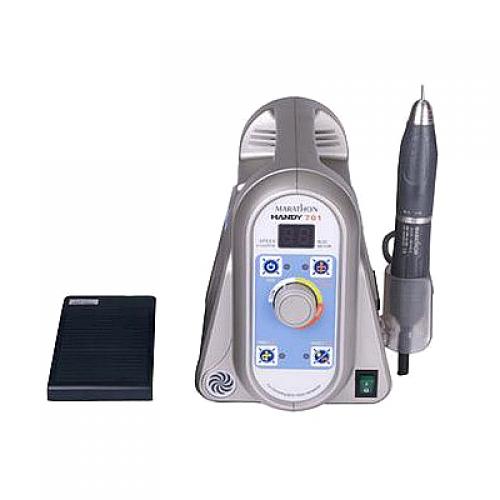

Marathon S02 Handy Brushless Micro Motor

Dental Marathon S02 Handy Brushless Micro Motor


Features

1. Vertical & portable type for the dental micro motor
2. Variable speed control by hand or foot pedal
3. Maximum torque set mode
4. Digital speed display speed 1000- max 50,000 rpm
5. Maximum rotation speed display set mode
6. Self diagnosis function
7. Auto cruise speed function
8. Error code display function
9. Unti has convenient magnetic bur holder
10. Round cradle handpiece mount

Specifications
Control Unit Model :　SDE -H701
Catalog No. 7100
Voltage: 100-120v/ 200-240v
Cycle: 50/60 Hz
Electric Power: 50VA
R.P.M Handpiece max
Weight: 2.7 Kg
Dimension: 137mm  x 232mm x 180mm

Catalog: # 6102
Nonload: 1000-50,000rpm
Max torque: 7.8 Ncm
Electric power: 230W
Weight: 238g
Dimension: 159mm  x 27 mm
